Description
Dip handles rotate to fit different shoulder widths
Premium beveled pad with sport stitching
5 lb increment weight for more variety
Simple platform adjustment
Premium Strength cables
230 lb weight stack, 1:1 ratio
Additional Information
MULTI-FUNCTIONAL TRAINING VERSATILITY

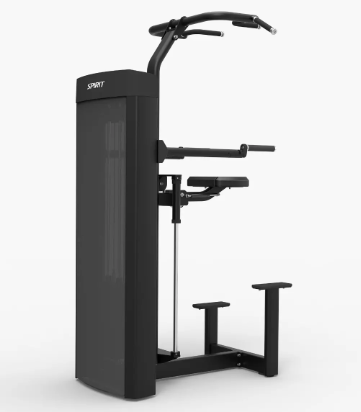

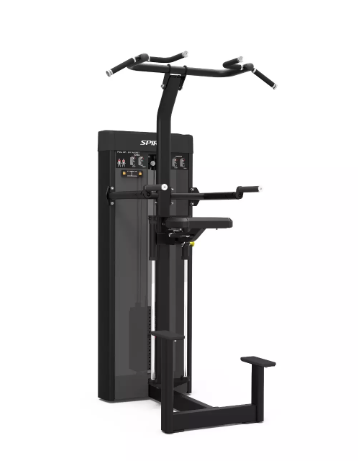

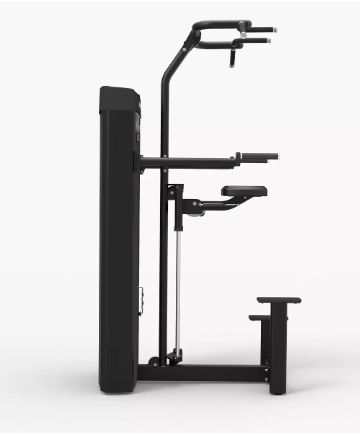

One machine, double the function. The Pull Up and Dip Assist machine uses a weight stack to reduce the user’s own body weight for pull-up and dip exercises. The user platform positions users in a kneeling position for a greater sense of security. Dip handles rotate to fit different shoulder widths.
Integrated, digital rep counter ensures users know how fast or slow they are moving
Premium grips and beveled knee pad with sport stitching
230 lb graduated weight stack, 1:1 ratio
Specifications
|
PERFORMANCE
230 lb Weight Stack 5 lb Increment Weight 40 lb Top Plate (4 x 10 lb Plates) 1 x 10 lb Plate 12 x 15 lb Plates Pulley Ratio: 1:1 Weight
|
FRAME
Premium Strength Cables Heavy Gauge Steel Frame Low Profile Design High-Quality Electrostatic Powder Coat Finish Fully Enclosed Weight Stack
|
|
CONVENIENCE
Rep/Time Counter (2 C Batteries required, not included) Start/Finish Workout Diagrams Pivoting Knee Pad Multiple Grip Options Storage Trays (Top of Weight Tower)
|
DIMENSIONS
Set-Up Dimension: 48.7" L x 46.7" W x 88" H Assembled Unit Weight: 582.8 lb Recommended User Height: 4’11” to 6’8” Max User Weight Capacity: 360 lb
|
WARRANTY
10 Years Frame, Weight Plates, Cams, Swivel Welded Parts
5 Years Bushings, Bearings, Shocks, Pulleys, Guide Rods
1 Year Paint and Finishes, Cables, Grips, Counter/Timer, Pull-Pin Components, Rail Wheels, Attachments, All Other Parts Not Mentioned
6 Months Upholstery
1 Year Labour
