Description

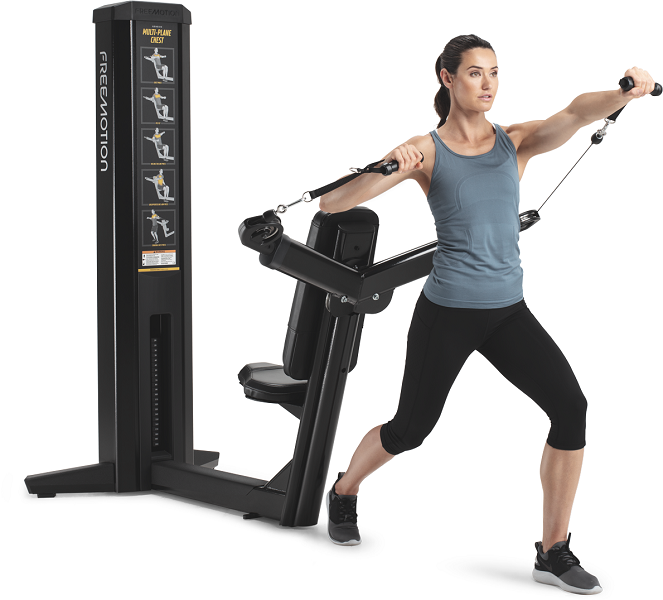

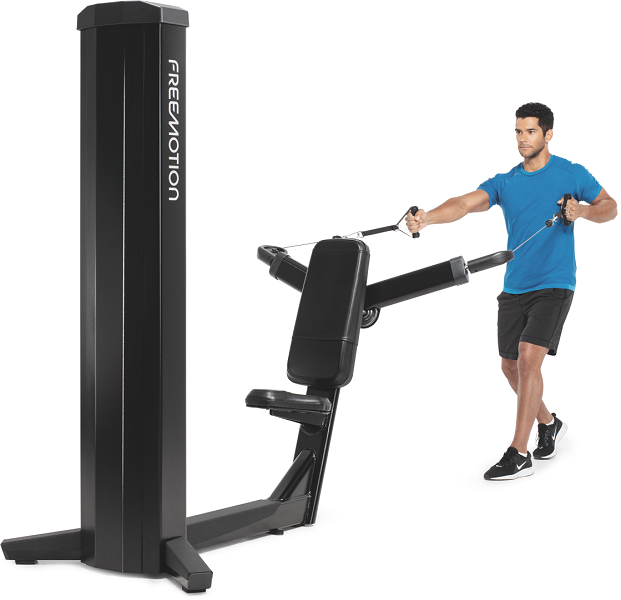

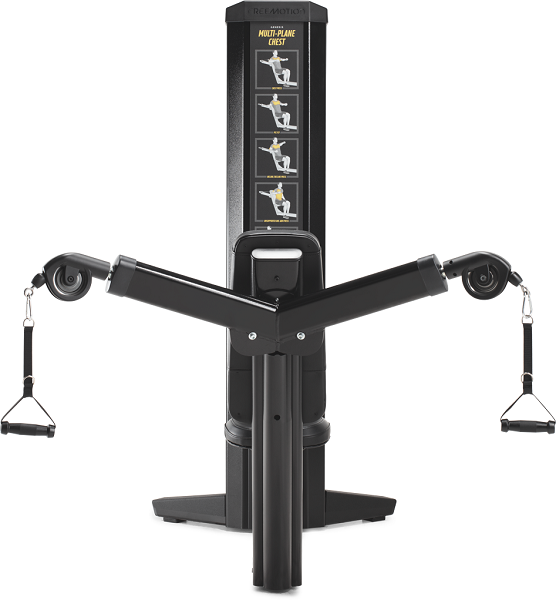

The GENESIS Multi-Plane Chest embodies the best in cable-based functional training. It can accommodate movement progressions from seated to standing and from one arm to two, with full range of motion. This versatility gives trainers (and users) the ability to program just about any sport- or life-specific exercise through all planes of movement. Add a bit more challenge by exercising standing behind the machine, adding rotation or including accessories like stability balls to test balance.
Additional Information
Freedom to Move
The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion
Movement Variety
Handles move independently for single and alternating arm exercises.
Walk Up and Work Out
With no required adjustments, users can simply walk up, grab the handles and start moving.

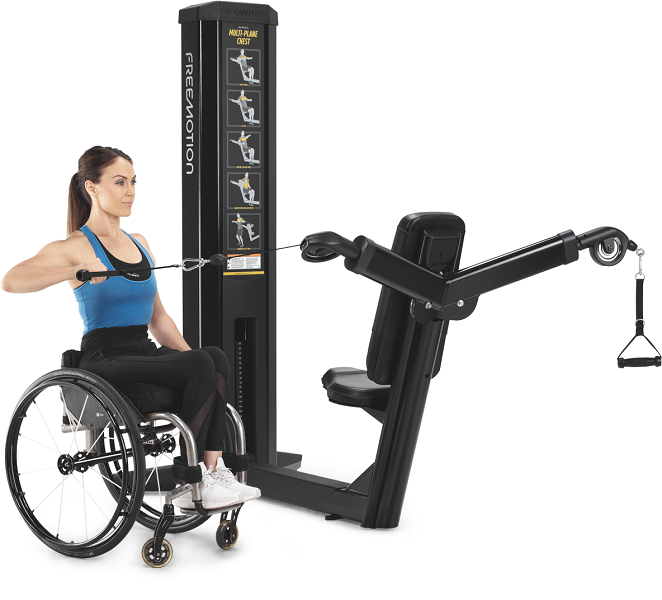

Wheelchair Accessible
The open design makes it wheelchair accessible, welcoming to users of all abilities.
Walk Up and Work Out
With no required adjustments, users can simply walk up, grab the handles and start moving.
Unlimited Workout Options

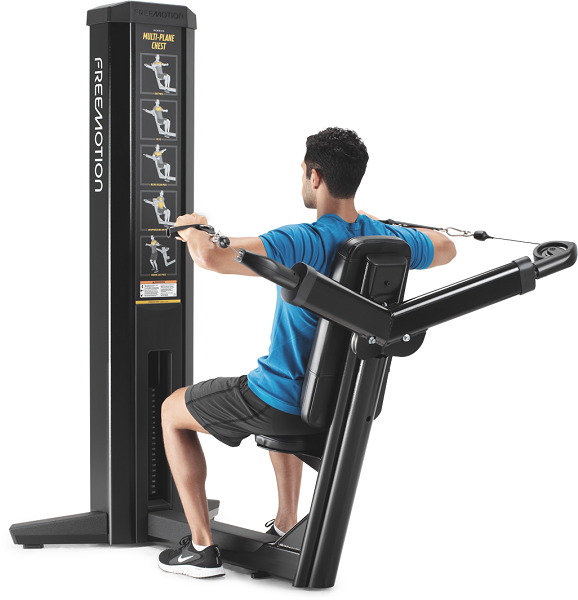

Progress movements from seated to standing and add rotation to keep workouts evolving as fitness improves.
Extensive Cable Travel
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.

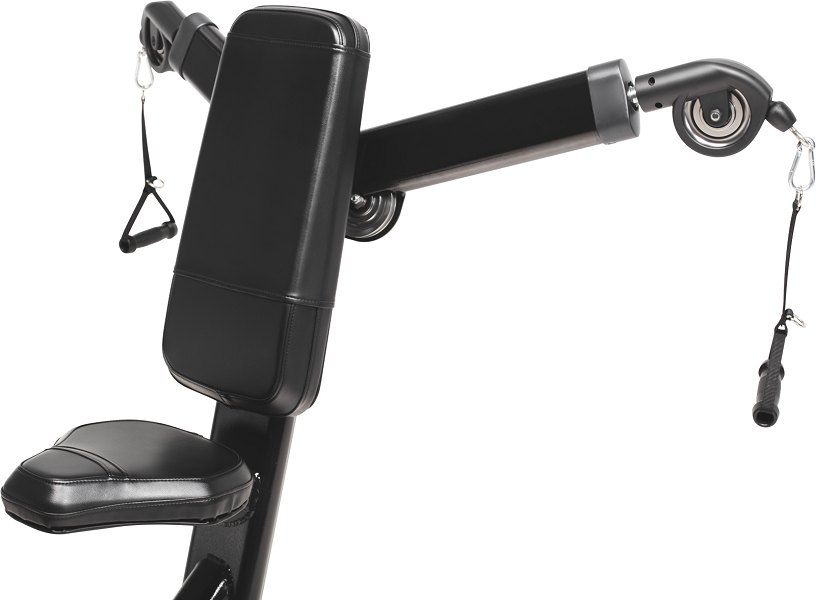

Padded, Contoured Seat
For beginning users or those looking to isolate the lower body, the seat features contoured padding for a comfortable fit.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.
Kick Plates
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
Specifications
Product Features
Instructional Placards Yes
Adjustments N/A
Resistance 1 arm: 100 lb / 45.3 kg
2 arms: 200 lb / 90.7 kg
Seat Vinyl, 4.5 in / 11.4 cm thick foam
Pulleys Swivel pulleys
Cable Travel 38 in / 96.5 cm
Rubber Feet Molded floor protectors
Maximum User Weight 350 lb / 159 kg
Americans with Disabilities Act (ADA) Wheelchair Accessible
Product Specifications
Weight Stack 200 lb / 90 kg
Drop Down Weight N/A
Weight Stack Configuration 5-50 x 5 lb / 2.2-22.6 x 2.2 kg
60-200 x 10 lb / 27.2-90.7 x 4.5 kg
Standard Frame Color Black River, Flat Black, Platinum Sparkle, White River
Optional Frame Color Custom colors available upon request
Plastic Color Ebony
Standard Upholstery Color Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color Custom colors available upon request
Product Dimensions & Weight

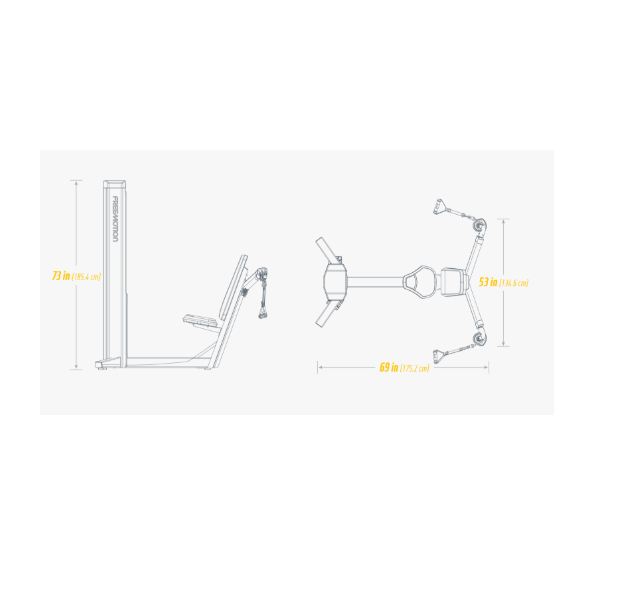

Dimensions L x W x H 69 x 53 x 73 in / 175.2 x 134.6 x 185.4 cm
Footprint 69 x 53 in / 175.2 x 134.6 cm
Weight 487 lb / 220 kg
Shipping Dimensions 71 x 53 x 78 in / 80.3 x 134.6 x 198 cm
Shipping Weight 487 lb / 220.8 kg
Certifications EN957, CE
Warranty (US & Canada)
Frame 10 Years
Parts 3 Years
Cables & Labor 1 Year
Cosmetic & Wear Items 6 Months
Upholstery & Padding 120 Days
