Description

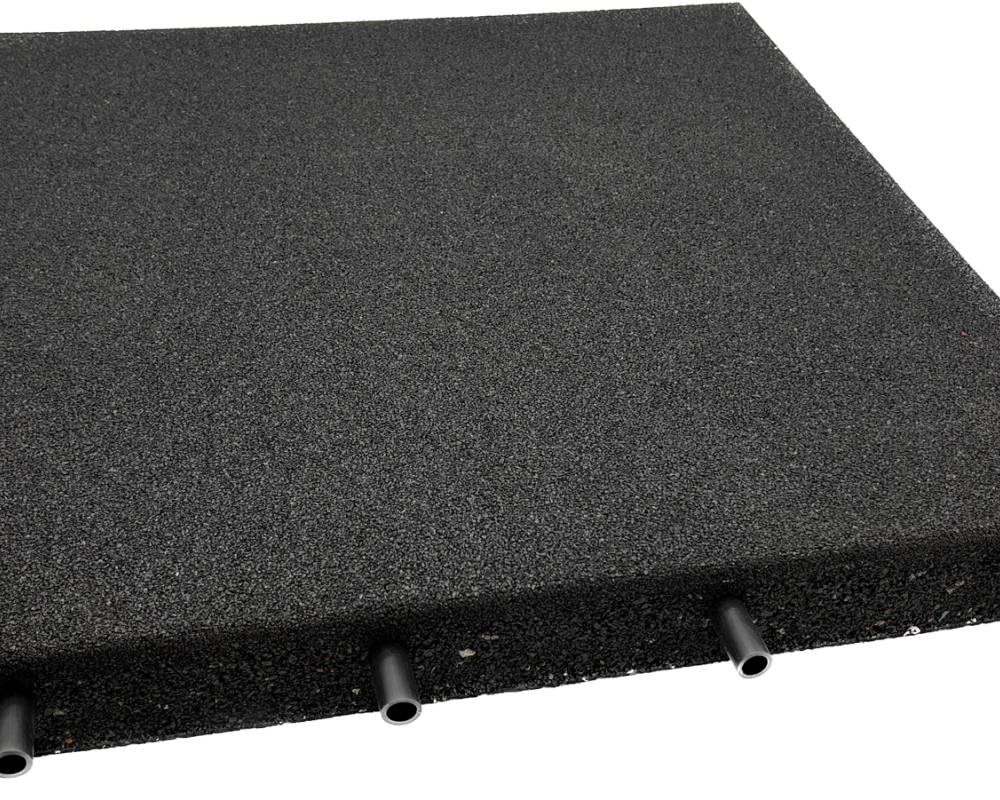

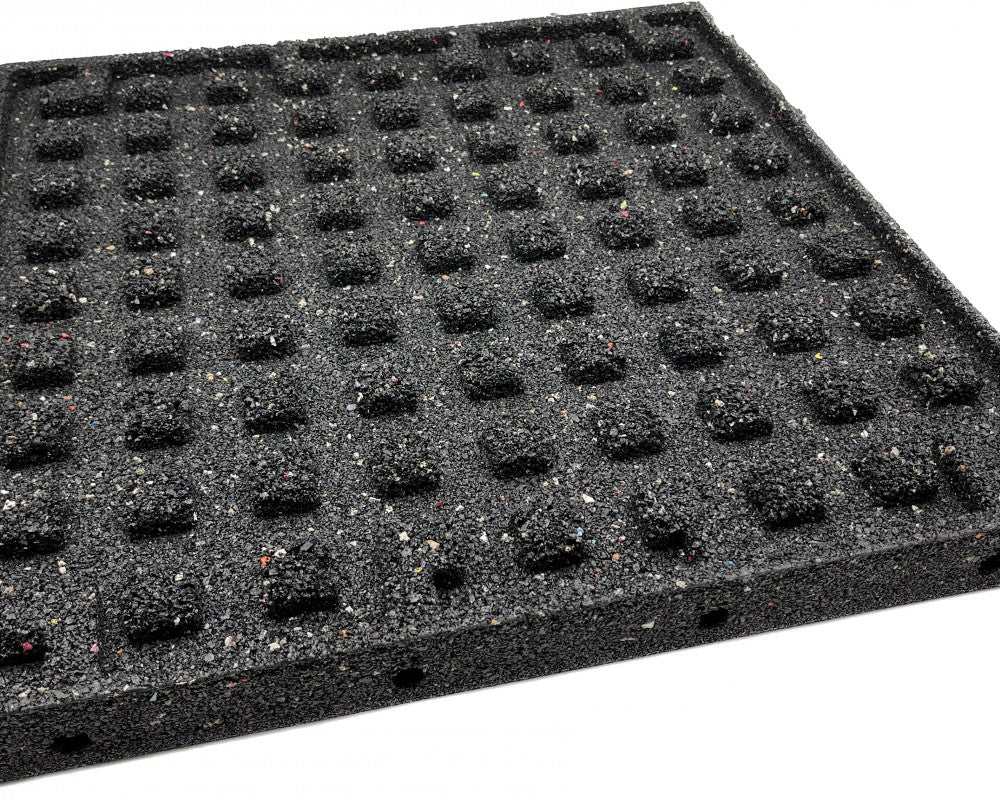

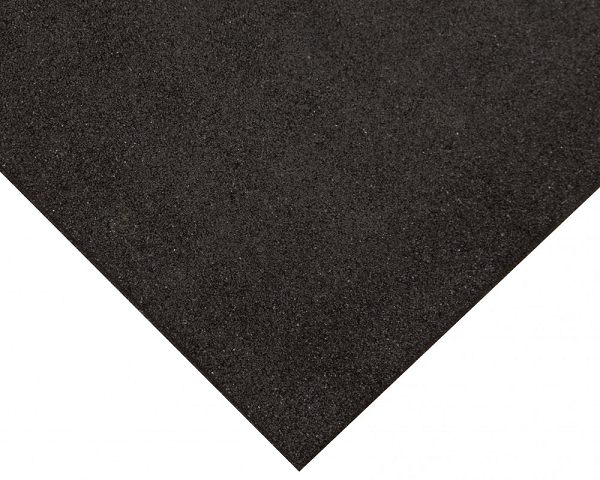

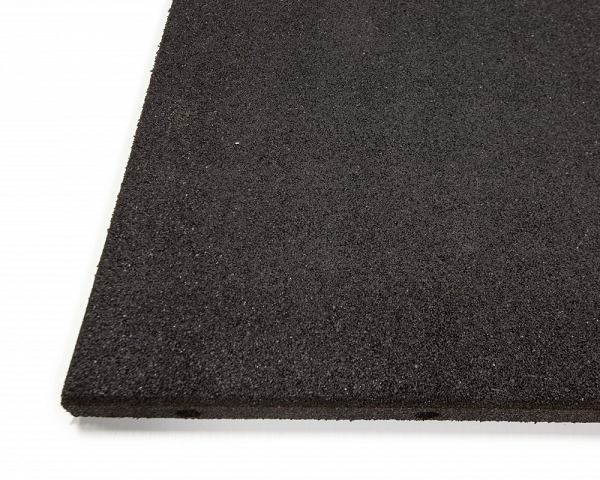

Apollo™ fitness tile is the ideal flooring for workout area above occupied spaces. This non-laminated molded tile has superior vibration absorption and unparalleled noise reduction properties. The grid back design of the 1" tile has been engineered to provide increased stability for cardio equipment. The 1.5" and 2.75" tiles provide additional sound reduction for free weight areas.
Perfect for: fitness centres, weight rooms, free weight areas
Additional Information
Apollo Fitness Tiles are made from a combination of 100% post-consumer recycled SBR
(styrene butadiene rubber) and EPDM (ethylene propylene diene monomer) rubber, bonded with a
water-based polymer. Colored toppings are made from EPDM granules. All colored toppings are
approximately ½” (12 mm) thick with the SBR granules making up the remainder of the tile.
Apollo Fitness Tiles meet standards specified under the LEED® (Leadership in Energy and
Environmental Design) criteria developed by both the U.S. Green Building Council (USGBC) and
Canada Green Building Council (CaGBC ).
Apollo Fitness Tiles are FloorScore(R) certified under the criteria developed by the Resilient
Floor Covering Institute (RFCI) and certified by Scientific Certification Systems (SCS), Inc. Registration
# SCS-FS-04063.
Special Considerations:
Fitness Centers: 1 ½” Tile not recommended for use under cardio equipment.
Apollo Fitness Tiles and accessories:
A. Apollo Fitness Tiles
Tile Size: Thickness:
24” x 24” = 4 ft² • 1” / 25 mm
61 cm x 61 cm = 0.37 m² • 1½” / 38 mm
(2’ x 2’ square tile)
NOTE: All measurements are subject to nominal variation.
B. Wedges & Wedge Tiles are used around the perimeter of an area to create a transition. They can be adhered with adhesive to the edge of the tile and/or glued to the sub-surface
Specifications
1” / 25mm transition wedge: 36” long x 12” wide = 3.0 sq.ft.
91.5 cm long x 30.5 cm wide = 0.28 m²
1½” / 38mm transition wedge: 36” long x 18” wide = 4.5 sq. ft.
91.5 cm long x 45.7 cm wide =0.42 m²
C. Corner wedges, designed for use on all 90° angles.
(Note: corners for 1” tiles must be fabricated on site from 36” 1” wedge piece)
Dimensions: (available in outside and inside format)
1½” / 38mm outside corner wedge: 9¾” long (inside edge) x 12” wide = .81 sq. ft.
24.8 cm long x 30.5 cm wide = 0.075 m²
1½” / 38mm inside corner wedge: 9¾” long (outside edge) x 18” wide = 1.22 sq. ft.
24.8 cm long x 45.7 cm wide = 0.113 m²
1½” outside corner 1½” inside corner
D. Half Tiles are designed so that the area can be installed in a staggered layout.
E. Interlocking Pins are included with every order, four per tile:
• 1” Tiles : 2.5” long and ¼” in diameter
• 1 ½” Tiles: 3.5” long and 5/8” in diameter
