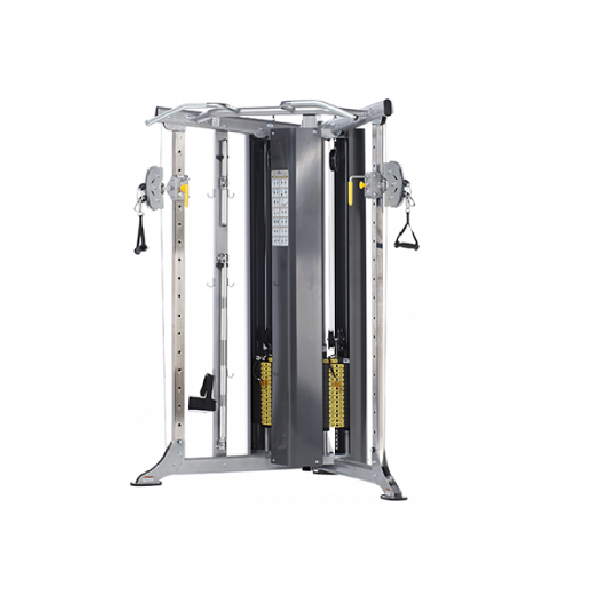

TuffStuff Evolution Dual Adjustable Pulley System

Save 19%
SKU: CDP-300

Price:
$3,999 $4,930
Stock:
Sold out

Description

TuffStuff’s Evolution Dual Adjustable Pulley System (CDP-300) features a compact, open frame design that easily fits in a corner. The functional trainer enables users to perform dozens of exercises with two 16-position dual adjustable high/low pulley cable stations. The CDP-300 also includes a nickel-plated pull-up bar for wide, narrow, reverse and neutral grips.

Compact, space-efficient corner design to fit any facility size
Commercial-grade welded construction
16-position dual adjustable high/low pulley cable stations
Two (2) 150 lb steel weight stacks (optional upgrade to 200 lb)
Full length steel protective weight stack enclosures
Adjustable cable ratio of 1:2 or 1:4 for extended cable travel
Includes two nylon handles, accessories storage rack for squat bar, low row bar and ankle strap
Home Lifetime Warranty* and Light Commercial Warranty

Specifications

Weight 700 lbs
Dimensions 51 × 51 × 83 in
Home Lifetime Warranty
HOME LIFETIME WARRANTY*
Lifetime on everything to the original purchaser when used only in a HOME environment, applies to defects from manufacturer only.
*See Owner’s Manual for details.

Light Commercial Warranty
LIGHT COMMERCIAL WARRANTY

10 YEARS: Structural main frames, welds, cams and weight plates.
5 YEARS: Pivot bearings, pulleys, bushings, guide rods and gas shocks.
1 YEAR: Cables, linear bearings and pull-pin components.
6 MONTHS: Upholstery, finish and rubber grips.
ALL OTHER PARTS not mentioned, one year from the date of purchase to the original purchaser.

Light Commercial Use: Light Commercial warranty applies only to facilities like hotels, apartment complexes, personal training studios, fire & police stations, etc. where the equipment would be used by no more than 30 people per day.

Weight Stacks
Two 150 lbs. steel weight stacks (optional upgrade to 200 lbs.)

Frame
2 x 3” 11-gauge oval tubular steel frames with a combination of 2 x 2” round tubing.

All welded construction conforming to Structural Welding Code-Steel Standards and Specifications.

All frame bolts and nuts are 3/8” and 1/2” zinc oxide. Meets ANSI specifications.

Finish
Powder coat finish – Platinum Sparkle main frame and Cathedral Gray weight stack protective shields.

Cable Ratio
The CDP-300 features a unique dual cable ratio for extended cable travel and micro 2.5 lb weight adjustments. With a single cable hooked-up, the resistance felt at each handle is approx 1/4 of the weight selected. While dual cables hooked-up provides a 1:2 cable ratio, or approx 1/2 of the weight selected.

Other Specs
3/16” and 1/8” USA-Made/Certified EXERFLEX PRO® high performance fitness cable.

3/4” solid steel 1045 (tgp) hard chrome finish.guide rods.

1/2” push-pull spring loaded solid steel adjustment pins with ultimate load of 9040 lbs. and 46042 psi sheer strength.

All primary and secondary pivot assemblies are non-friction 2" sealed bearings and 1" solid steel pivot axles.

TuffStuff’s proprietary “flat-groove” 4-1/2” and 3-1/2” fiberglass-impregnated nylon pulleys with sealed roller bearings.
