Description

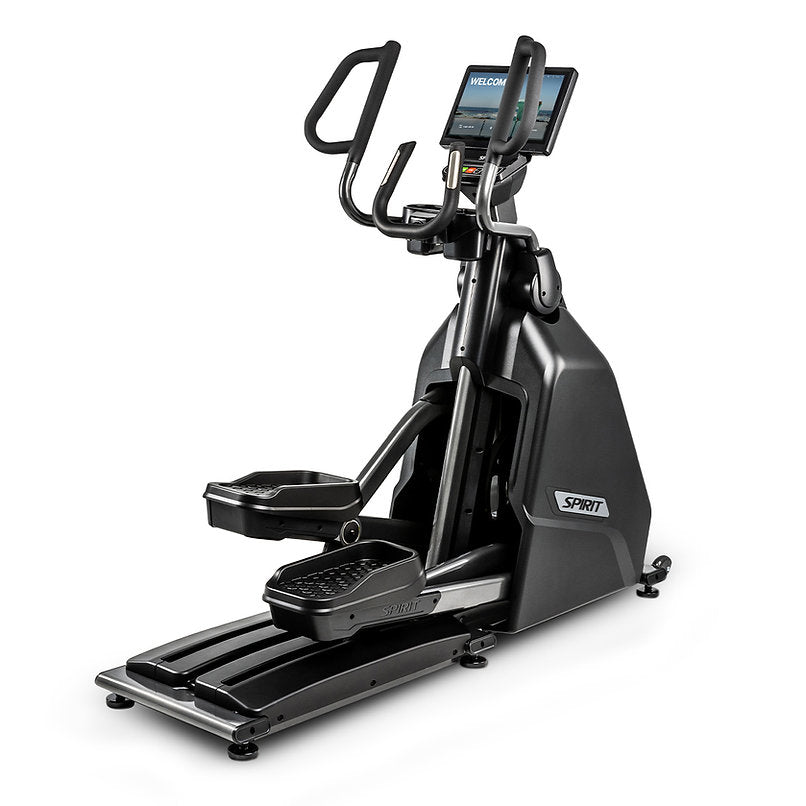

The 1000 Series Elliptical is engineered for a smooth, low-impact workout with a 30 lb (14 kg) flywheel and oversized pedals featuring a 2-degree inversion, promoting an ergonomic foot path to reduce joint stress. With 11 pre-programmed workout routines and D-Type grips, users can enjoy a variety of training options tailored to their fitness goals. Designed for both performance and entertainment, this elliptical features a 15.6” high-resolution, touchscreen with an intuitive, user-centric interface. It offers seamless connectivity, including pre-installed apps, screen mirroring, and direct HDMI access, keeping workouts engaging and interactive. Built to last, the durable drive train system and robust construction ensure long-term reliability, making the 1000 Series Elliptical an ideal choice for high-use environments.
15.6″ touchscreen with Bluetooth FTMS, screen mirroring and built-in TV, streaming, news, and social media apps
Sleek tablet-style design with an intuitive interface for easy navigation
Extra-wide 10-groove poly-v belt and roller bearing tensioner ensure smooth operation and long-lasting performance
30 lb (14 kg) flywheel with a 12:1 pedal-to-flywheel ratio delivers a consistently smooth stride at any speed or resistance level
21” (53 cm) stride length with a 2-degree pedal inversion for a natural, ergonomic motion
|

15.6″ Touchscreen
|

30 lb (14 kg) Flywheel
|
|

21″ (53 cm) Stride Length
|
Additional Information

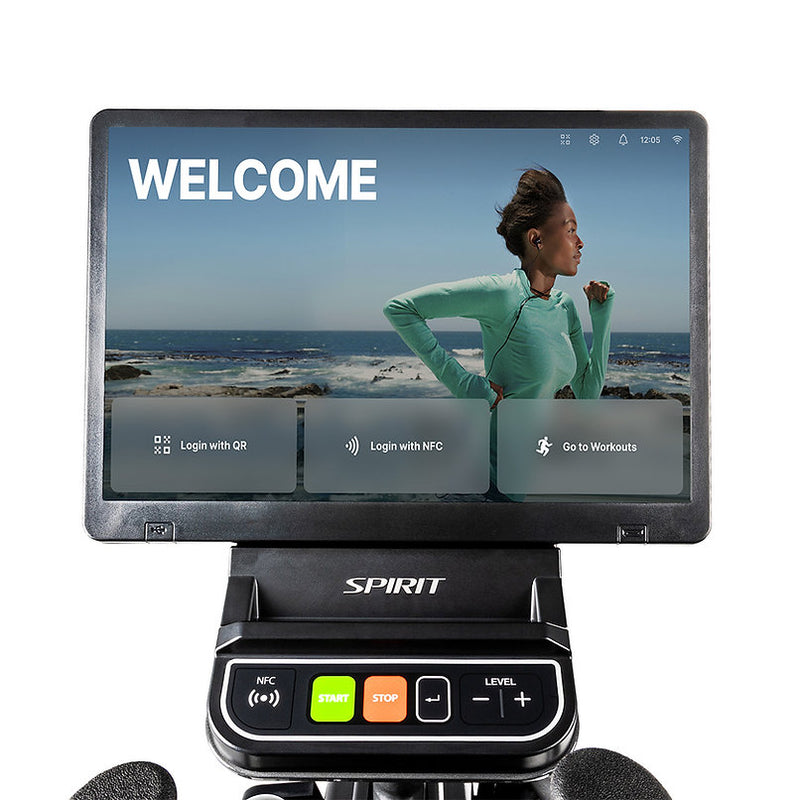

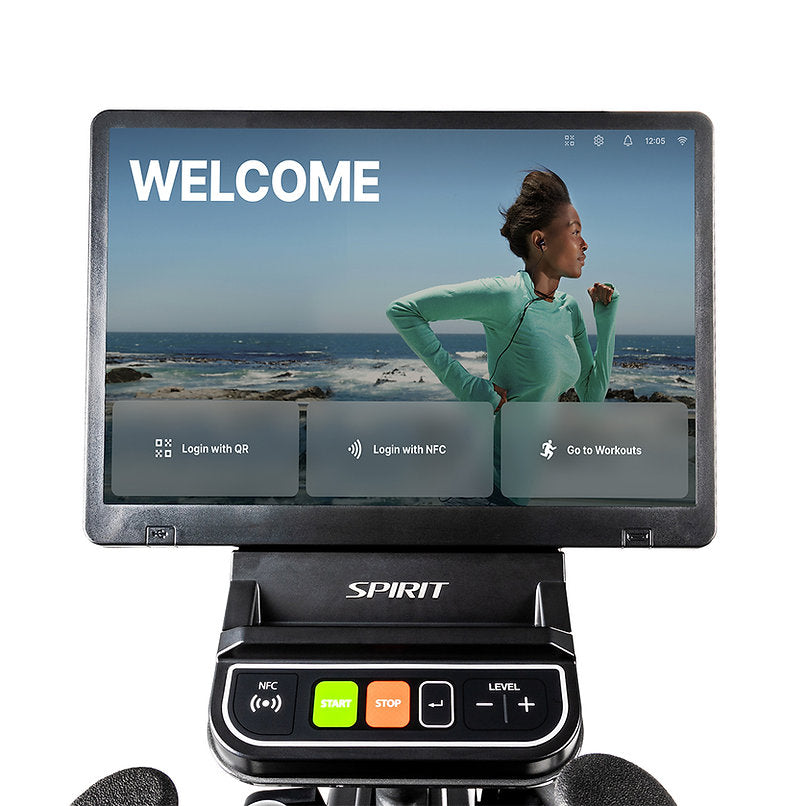

NEW 15.6” SMART TOUCHSCREEN DISPLAY
Tablet-style interface allows users to easily navigate the 15.6″ touchscreen to access 11 pre-set workout programs, built-in entertainment features like preloaded apps, screen mirroring, direct HDMI connectivity, and more.
ERGONOMIC PEDALS
Oversized pedals featuring an integrated 2-degree inward tilt to make your workout more comfortable. This design puts users in an anatomically correct position.

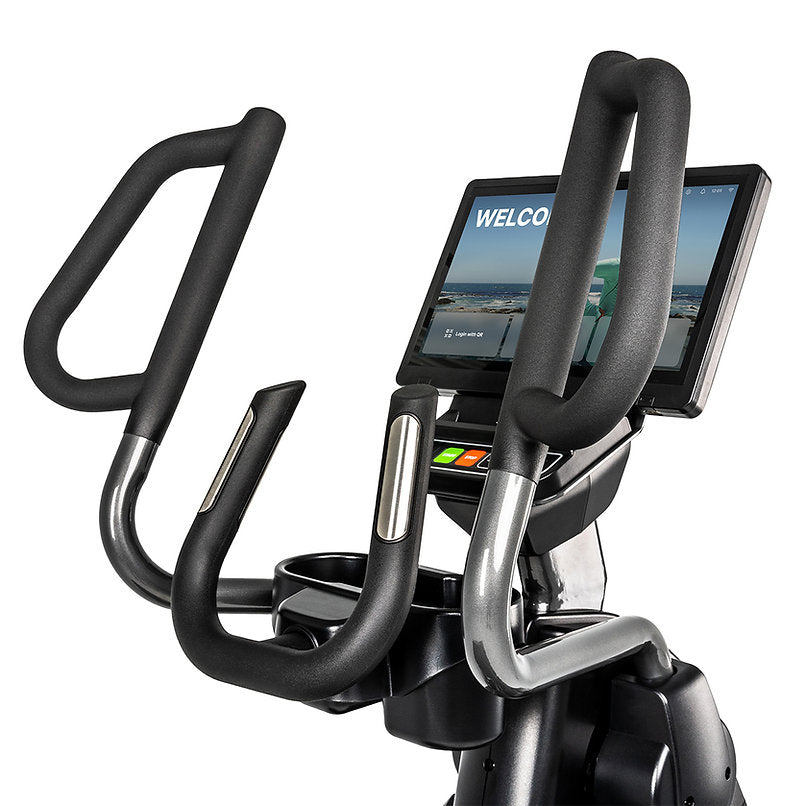

COMFORTABLE STRIDE & GRIP
Ergonomic 21” (53 cm) stride length provides a comfortable elliptical motion for users of all sizes. The multi-position D-type handlebar grip allows for a variety of hand placements.
Specifications
|
PERFORMANCE
Power: DC 24V/5A-Plug In Flywheel: 30 lb (14 kg) with a 12:1 Pedal-to-Flywheel Ratio 2.8” / 7 cm Industrial Roller Bearings Resistance: 40 Levels, Magnetic
|
CONSOLE
15.6" High-Resolution, Capacitive Touchscreen Feedback: Avg - Power/Speed/Level, Calories, Distance, HR, Level, METs, Power (Watts), Speed (RPM), Time, Time Left Programs: Manual, Hill, Fat Burn, Cardio, HIIT, Strength, Interval, Custom, Heart Rate, Watts, Fitness Test Bluetooth FTMS 4.0 HDMI C-SAFE
|
|
DIMENSIONS
Set-Up Dimension: 77”L x 32”W x 66”H (195L x 82W x 169H cm) Shipping Dimension: 80”L x 26”W x 47”H, (204L x 65W x 120H cm) Item Weight: 398 lb (181 kg) Shipping Weight: 441 lb (200 kg) Max User Weight Capacity: 450 lb (205 kg)
|
FRAME
Stride Length: 21” (53 cm) Pedal: Oversized with 2-Degree Inversion Handlebars: Multi-Position, D-type Frame: Epoxy Hybrid, Double Powder Coated Heavy-Gauge High-Strength Steel
|
|
CONVENIENCE
Hand Pulse Sensors Bluetooth Heart Rate Receiver (Chest Strap Not Included) USB Charging Port Wi-Fi Screen Mirroring Storage Tray Cup Holder
|
WARRANTY
COMMERCIAL WARRANTY Lifetime Frame 5 Years Brake / Parts 1 Year Labour
|
