The NuStep UE8 series offers advanced upper-body ergometer solutions for Canadian rehabilitation, neuro-physiotherapy, cardiac rehab, and inclusive exercise spaces.
Designed to ensure easy access for every user, the NuStep UE8 builds on the robust NuStep product line with a fully inclusive, swivel-design ergometer. Increasing upper body strength is a first step for many after a stroke or other injury.

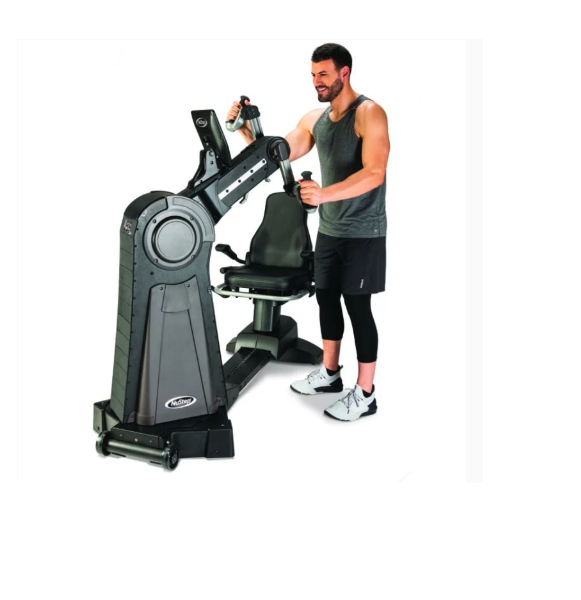

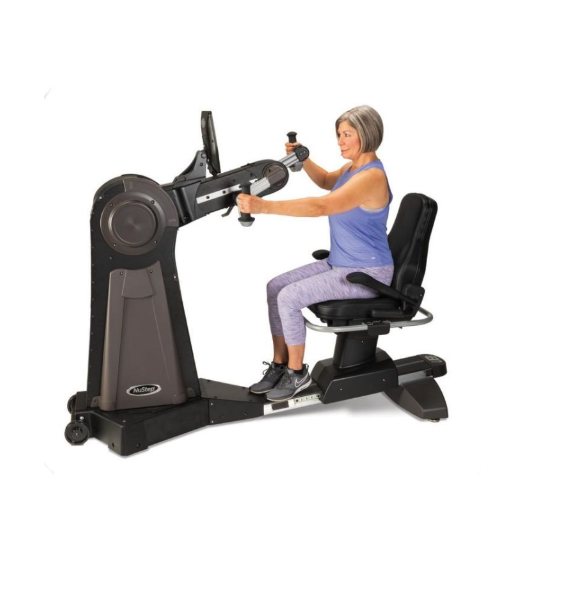

As an early step in their rehab journey, the UE8 accommodates wheelchairs, can be used with the swivel seat, and can even be used in a standing position. There is no heavy chair to remove or trip-and-fall hazards to navigate. The unique swivel motor design makes the UE8 ergometer fully accessible for every patient.
Integrated Sensor Technology provides real-time feedback on power imbalances between the left and right arms during use. This feedback is invaluable to clinicians, allowing for swift adjustments to treatment protocols.
Additional Information
Key Features & Highlights
1 Swivel motor for seated, standing or direct wheelchair access. Requires no seat removal
2 Dual-screen console with interactive programs
3 Bidirectional handles with integrated sensors
4 Comfortable 360° swivel, 12° reclining seat for users with mobility limitations, available in two sizes
5 15 levels of resistance with low-inertia start-up
6 Low step-through height for safety, accessibility & inclusivity
Purpose-built features with patient safety in mind

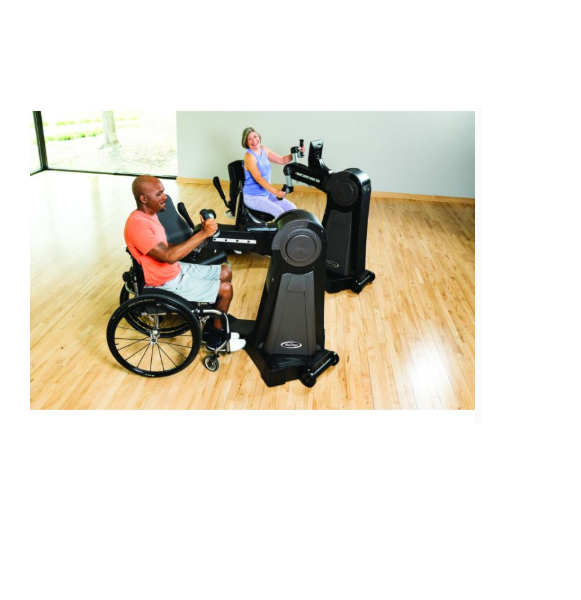

Wheelchair accessibility The unique swivel motor design accommodates wheelchairs without removing the seat or transferring the patient.
Low step through height Designed for safe access by users with mobility limitations.
Torso & Lap Belts For extra support, these belts can be added at the time of order. Cannot be retrofitted.
Gloves for low grip strength The optional WellGrip gloves allow patients with limited grip strength to safely use the UE8.
Robust Warranty With 10 years on the frame, 3 years on parts and 1 year of labour.
USB and Bluetooth connectivity Users can use the USB port or connect via Bluetooth™ with the NuStep app to save profiles and performance history.
Specifications
| Feature | UE8 Pro | UE8 Max |
| Weight Capacity | 500 lb (227 kg) | 600 lb (272 kg) |
| Seat Width | 18″ (46 cm) | 22″ (56 cm) |
| Unit Weight | 310 lb (141 kg) | 230 lb (145 kg) |
| Unit Footprint | 74″ × 32″ × 52″ (188 × 82 × 117 cm) | 74″ × 32″ × 52″ (188 × 82 × 117 cm) |
| Height Capacity | 4’6” to 6’7” (137-200cm) | 4’6” to 6’7” (137-200cm) |
| Resistance Level / Modes | 15 resistance levels, advanced program modes | 15 resistance levels, advanced program modes |
| Interactive Display | Dual-screen console | Dual-screen console |
| Seat Adjustability | 360° swivel, 12° reclining seat | 360° swivel, 12° reclining seat |
| Power | AC Adapter with front and rear power jacks | AC Adapter with front and rear power jacks |
| Warranty | Frame: 10 years | Parts: 3 years | Labour: 1 year | Frame: 10 years | Parts: 3 years | Labour: 1 year |
