Description
The ability to push things overhead is an essential function in life that requires more than isolated shoulder strength. It also requires core strength and stability to protect the spine. The GENESIS Multi-Plane Shoulder helps build strength through the torso and joint stabilizers with its cable-based design. The lack of required adjustments and the extensive cable travel lets the user move from supported to standing to adding rotation and beyond, continuously adding variety and challenge to their program.
Additional Information
Freedom to Move

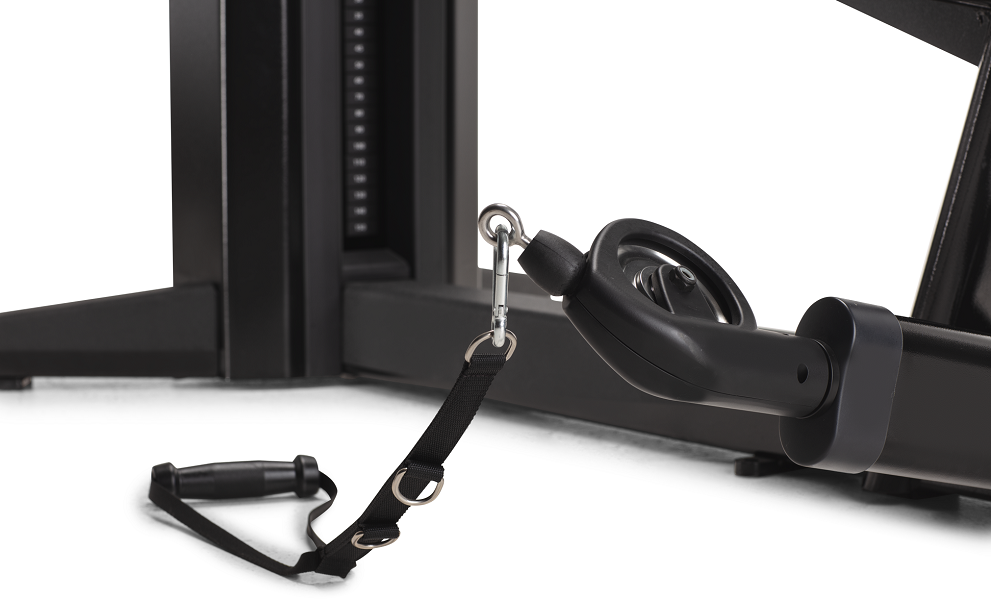

The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.
Movement Variety
Handles move independently for single and alternating arm exercises.
Walk Up and Work Out
With no required adjustments, users can simply walk up, grab the handles and start moving.
Extensive Cable Travel
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.

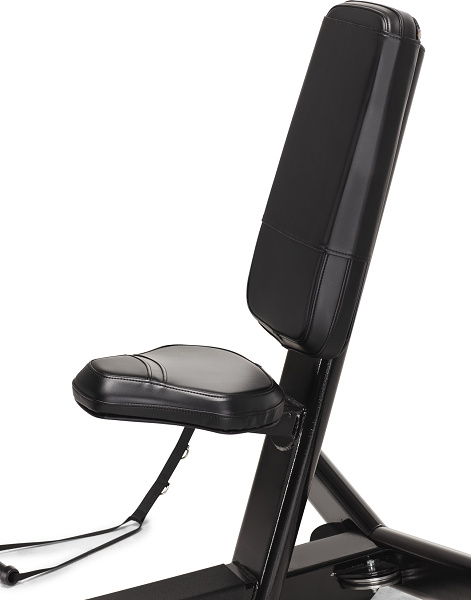

Padded, Contoured Seat
For beginning users or those looking to isolate the lower body, the seat features contoured padding for a comfortable fit.
Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.
Kick Plates
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
Specifications
Product Features
Instructional Placards Yes
Adjustments N/A
Resistance 1 arm: 75 lb / 34 kg
2 arms: 150 lb / 68 kg
Seat Vinyl, 4.5 in / 11.4 cm thick foam
Pulleys Swivel pulleys
Cable Travel 42 in / 106.6 cm
Rubber Feet Molded floor protectors
Maximum User Weight 350 lb / 159 kg
Americans with Disabilities Act (ADA) Wheelchair Accessible
Product Specifications
Weight Stack 150 lb / 68 kg
Drop Down Weight N/A
Weight Stack Configuration 5 - 50 x 5 lb / 2.2 - 22.6 x 2.2 kg
60 - 150 x 10 lb / 27.2 - 68 x 4.5 kg
Standard Frame Color Black River, Flat Black, Platinum Sparkle, White River
Optional Frame Color Custom colors available upon request
Plastic Color Ebony
Standard Upholstery Color Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
Optional Upholstery Color Custom colors available upon request
Product Dimensions & Weight

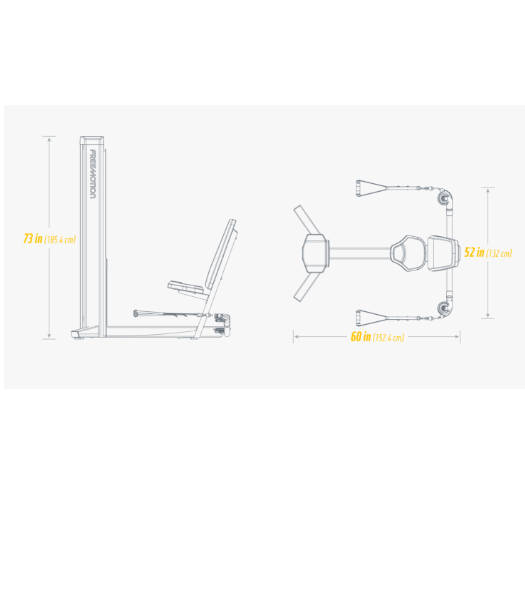

Dimensions L x W x H 60 x 52 x 73 in / 152.4 x 132 x 185.4 cm
Footprint 60 x 52 in / 152.4 x 132 cm
Weight 435 lb / 197.3 kg
Shipping Dimensions 63 x 50 x 73 in / 160 x 127 x 185.4 cm
Shipping Weight 431 lb / 195.4 kg
Certifications EN957, CE
Warranty (US & Canada)
Frame 10 Years
Parts 3 Years
Cables & Labor 1 Year
Cosmetic & Wear Items 6 Months
Upholstery & Padding 120 Days
Spec Sheet
