Description

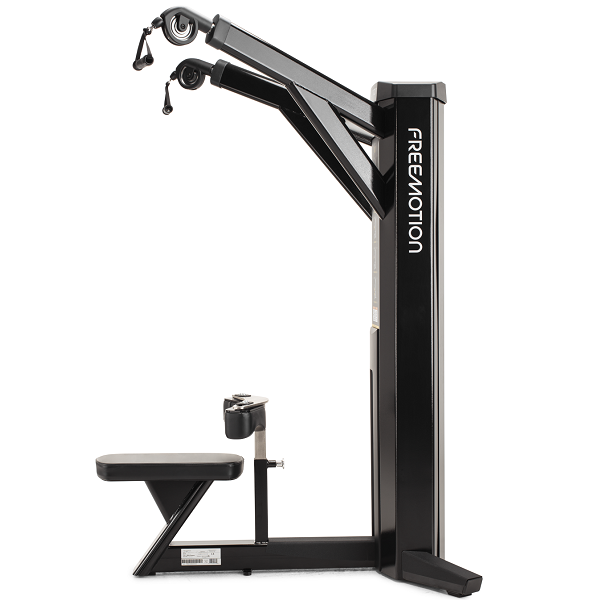

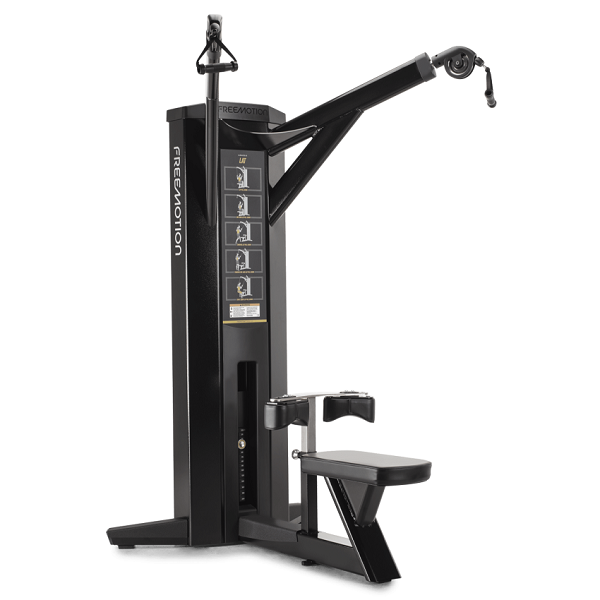

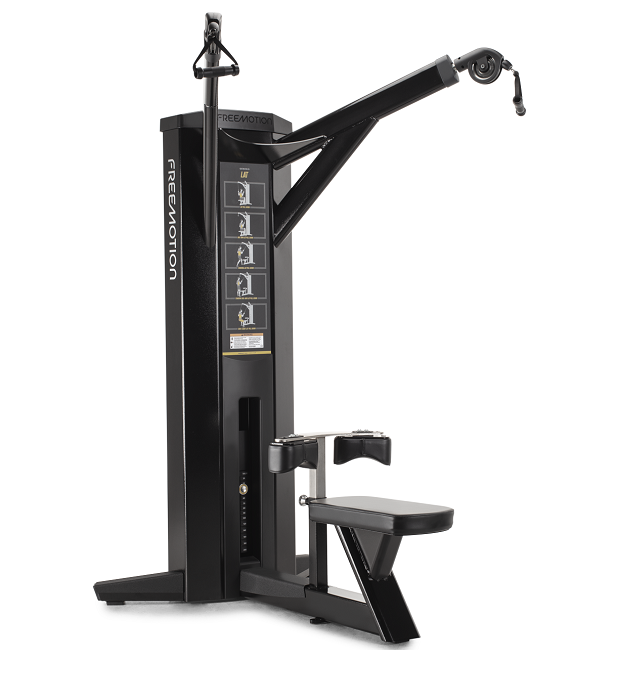

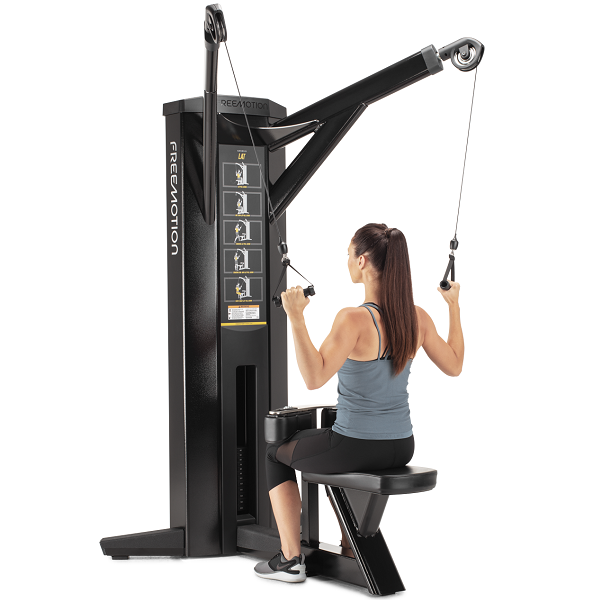

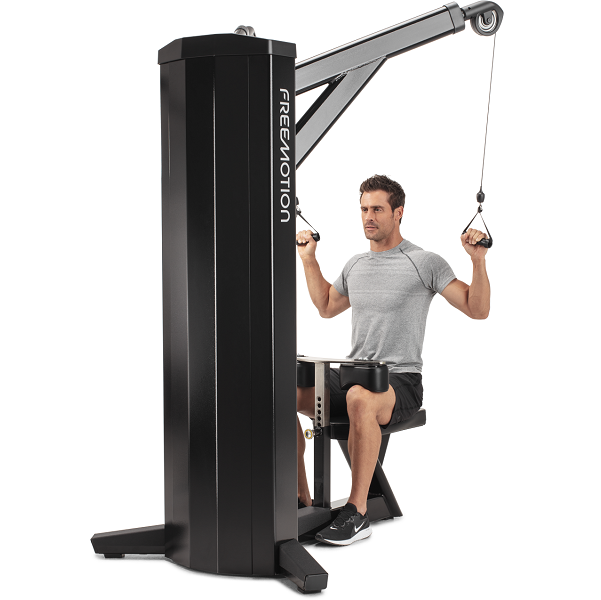

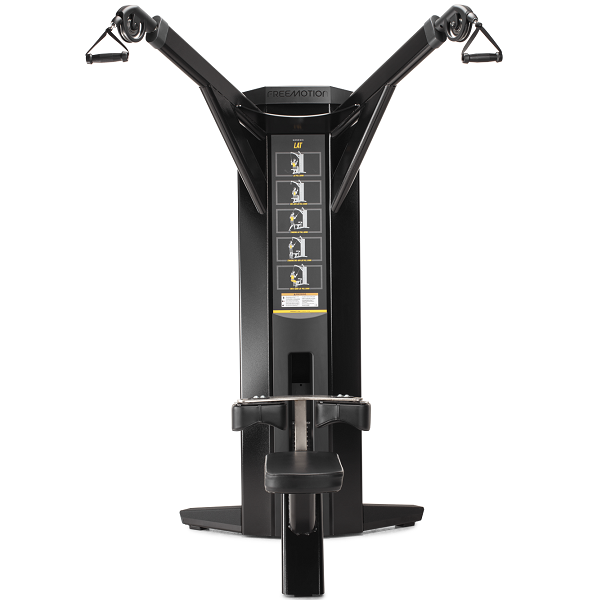

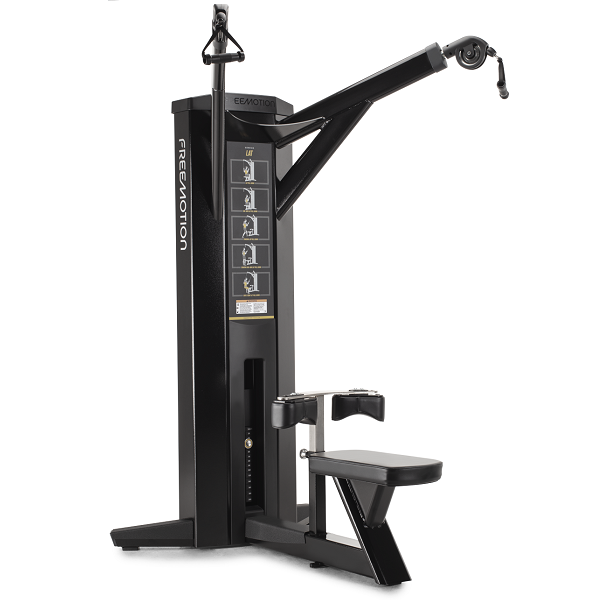

To optimize calorie burn, it's important to build lean mass in the large muscle groups like the lats. The GENESIS™ Lat features an adjustable thigh pad that is contoured and swivels for a comfortable fit to isolate the lower body. The signature swivel pulleys with extensive cable travel give users the range of motion to perform seated, standing and dynamic pulldown movements.
Additional Information
Isolation to Integration
The seat features adjustable thigh pads to isolate the lower body. Users can simply stand to work out unsupported and integrate more muscle groups.
Freedom to Move
The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.
Movement Variety
Handles move independently for single and alternating arm exercises.

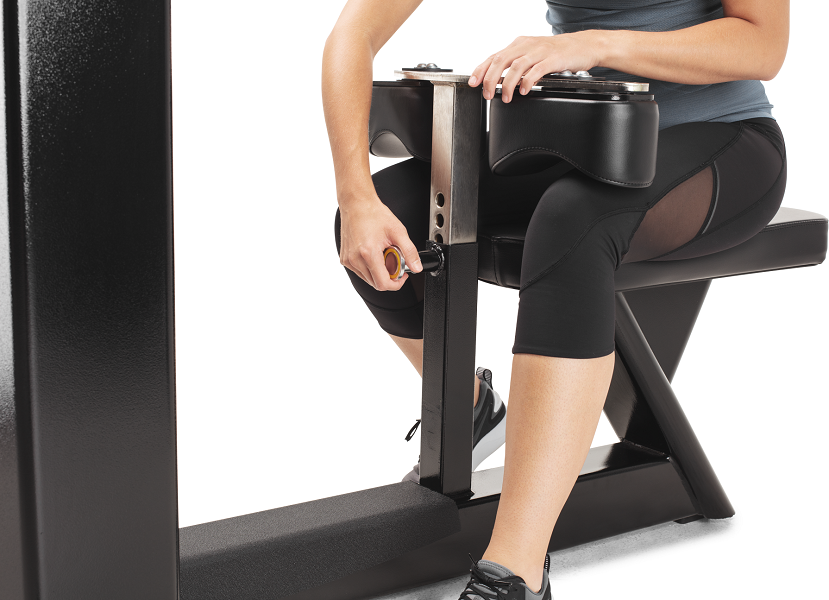

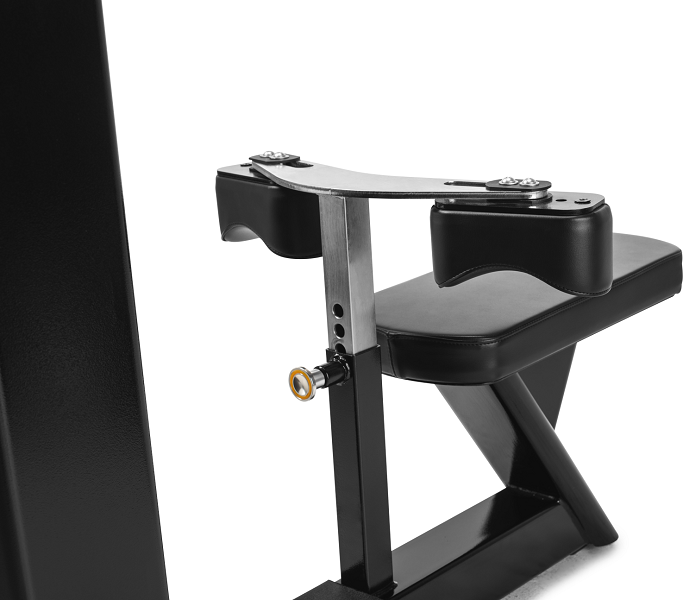

Padded Seat and Thigh Pads
Thigh pads are contoured and swivel to comfortably isolate the legs. Seat bottom is also padded for fit and comfort.
Extensive Cable Travel
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.

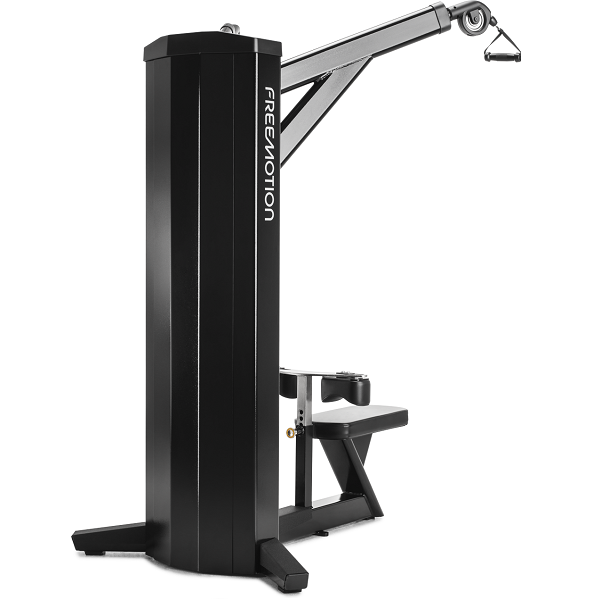

Enclosed Weight Stack
The weight stack is enclosed to limit access to moving parts for safety.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.
Kick Plates
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
Specifications
Product Features
-
Instructional Placards Yes
-
Adjustments Adjustable thigh pads
-
Resistance 1 arm: 100 lb / 45.3 kg
2 arms: 200 lb / 90.7 kg
-
Seat 1.5 in thick foam / Molded vinyl
-
Pulleys Swivel pulleys
-
Cable Travel 85 in / 215.9 cm
-
Rubber Feet Molded floor protectors
-
Maximum User Weight 350 lb / 159 kg
-
Americans with Disabilities Act (ADA) N/A
Product Specifications
-
Weight Stack 200 lb / 90 kg
-
Drop Down Weight N/A
-
Weight Stack Configuration 5 - 50 x 5 lb / 2.2 - 22.6 x 2.2 kg
60 - 200 x 10 lb / 27.2 - 90.7 x 4.5 kg
-
Standard Frame Color Black River, Flat Black, Platinum Sparkle, White River
-
Optional Frame Color Custom colors available upon request
-
Plastic Color Ebony
-
Standard Upholstery Color Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
-
Optional Upholstery Color Custom colors available upon request
Product Dimensions & Weight
-

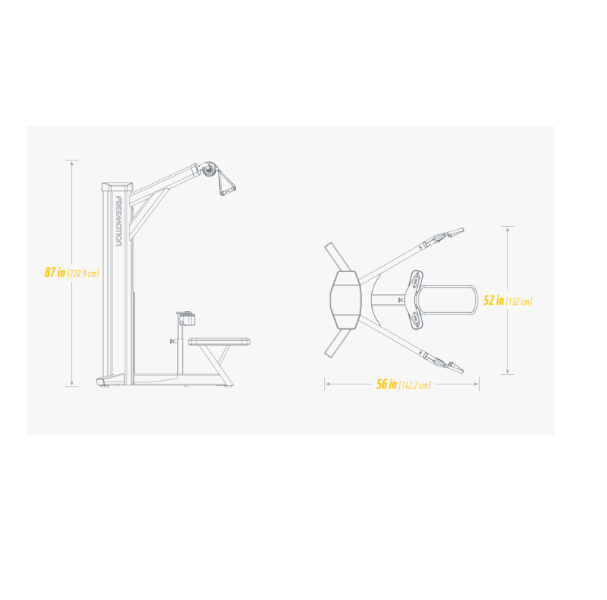

Dimensions L x W x H 56 x 52 x 87 in / 142.2 x 132 x 220.9 cm
-
Footprint 56 x 52 in / 142.2 x 132 cm
-
Weight 648 lb / 293.2 kg
-
Shipping Dimensions 65 x 56 x 85 in / 165.1 x 142.2 x 215.9 cm
-
Shipping Weight 485 lb / 219.9 kg
Warranty (US & Canada)
-
Frame 10 Years
-
Parts 3 Years
-
Cables & Labor 1 Year
-
Cosmetic & Wear Items 6 Months
-
Upholstery & Padding 120 Days
