Description

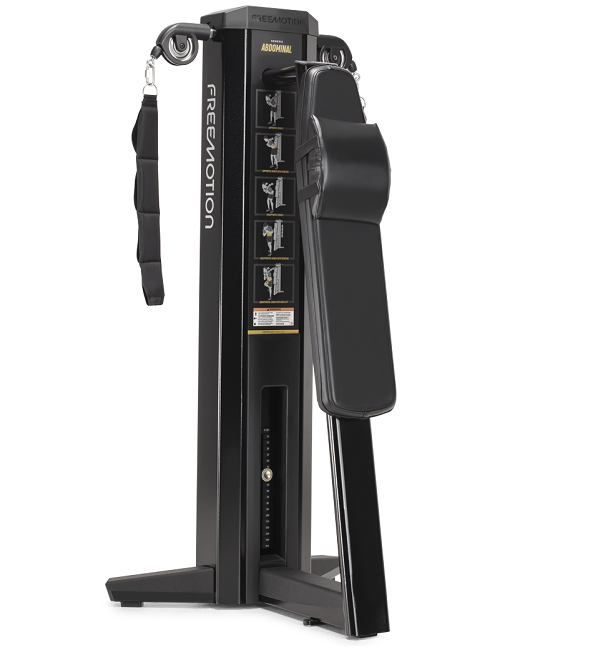

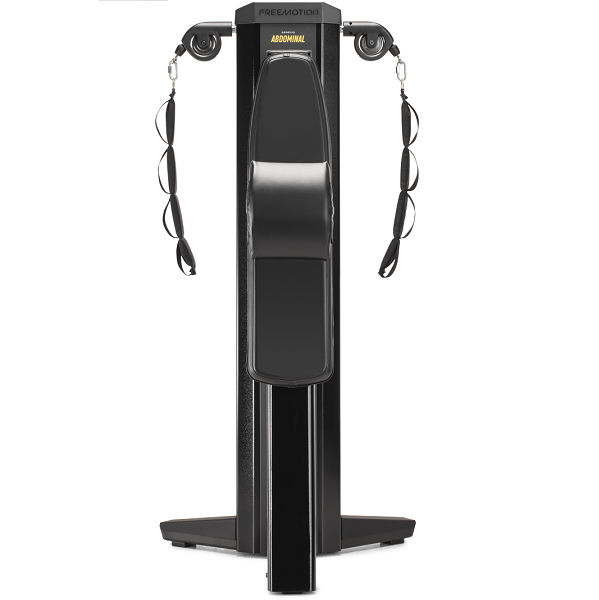

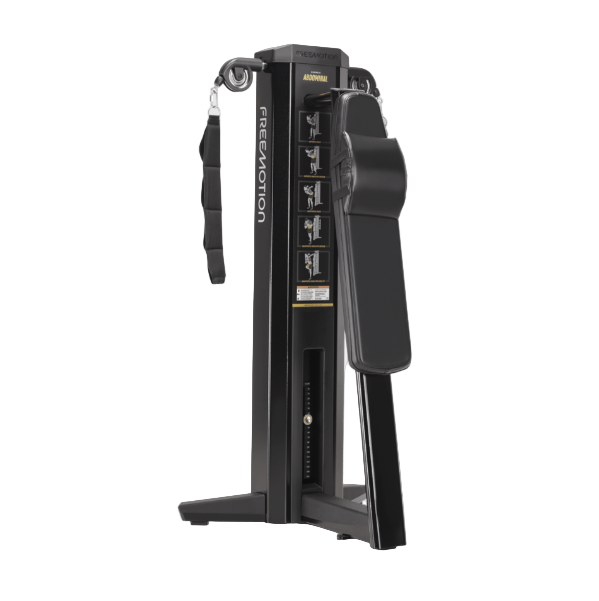

Swiveling pulleys and cable-based design gives users the freedom to move through their full range of motion. Arm straps move independently for unrestricted oblique and rotational movements and are padded for comfort under even heavy loads. The GENESIS™ Abdominal's simple, standing design provides nearly unlimited options for multi-planar core work.
Additional Information

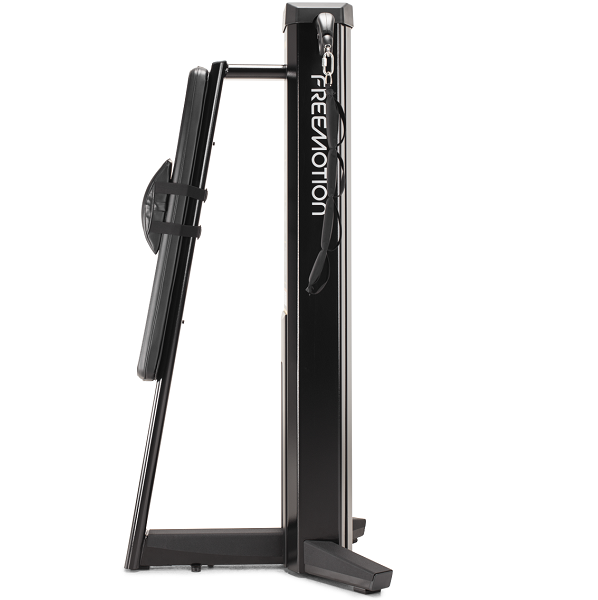

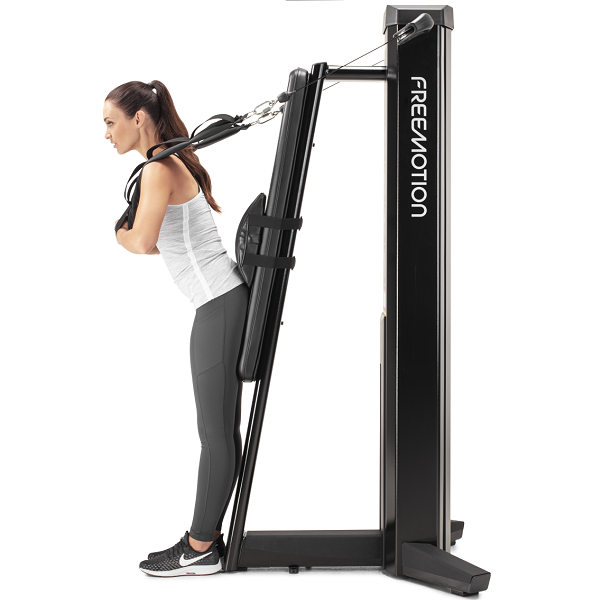

Go Vertical
In addition to being a space saver, the standing design functionality builds core strength.
Comfortable by Design

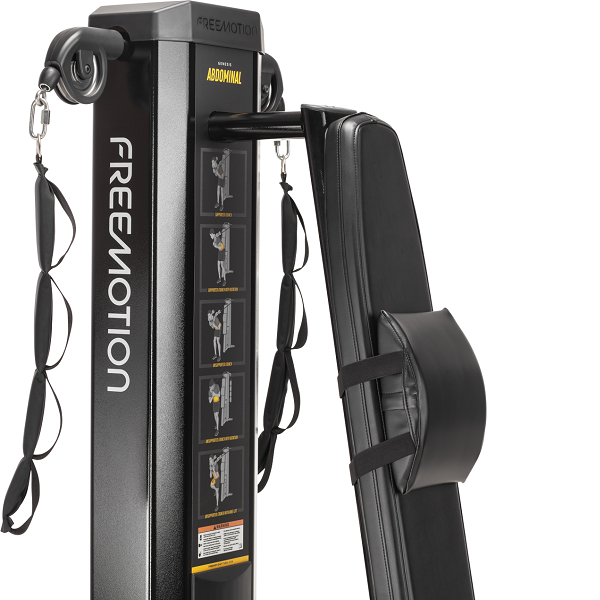

The backpad, lumbar support and handle straps are padded for comfort even under heavy loads.
Freedom to Move
The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.
Extensive Cable Travel
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
Movement Variety

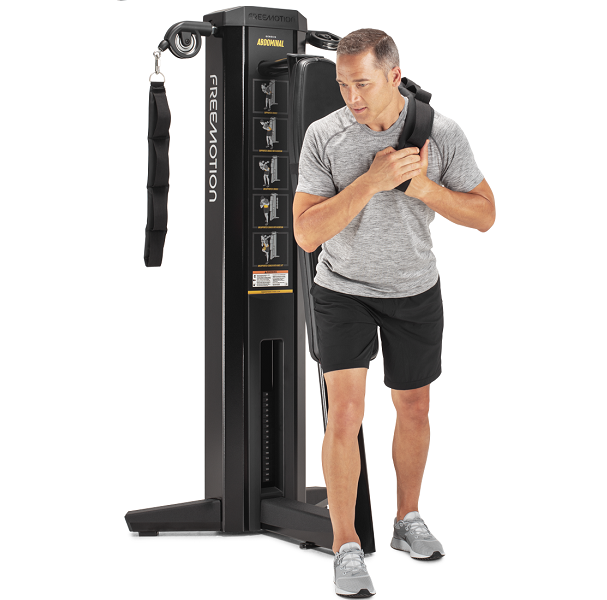

Handles move independently for single and alternating side exercises.
Enclosed Weight Stack

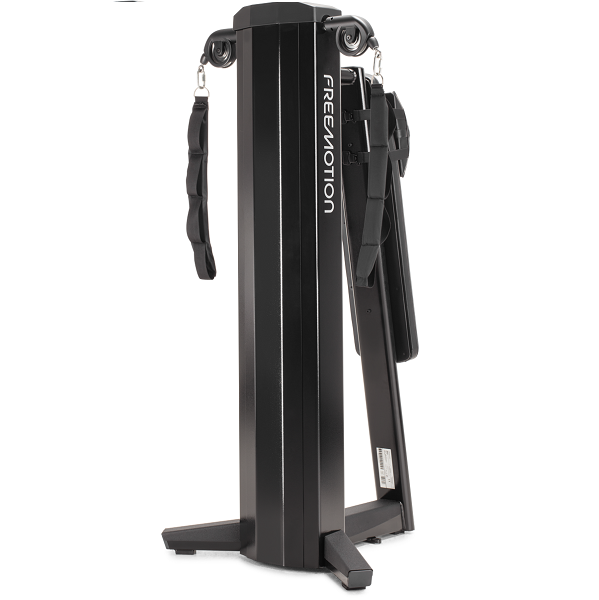

The weight stack is enclosed to limit access to moving parts for safety.
Built to Last
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.
Kick Plates
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
Specifications
Product Features
-
Instructional Placards Yes
-
Adjustments Lumbar Support
-
Resistance 1 arm: 75 lb / 34 kg
2 arms: 150 lb / 68 kg
-
Seat 1.5 in thick foam / Vinyl
-
Pulleys Swivel pulleys
-
Cable Travel 2 arms: 42 in (106.6 cm)
-
Rubber Feet Molded floor protectors
-
Maximum User Weight 350 lb / 159 kg
-
Americans with Disabilities Act (ADA) Wheelchair Accessible
Product Specifications
-
Weight Stack 150 lb / 68 kg
-
Drop Down Weight N/A
-
Weight Stack Configuration 5 - 50 x 5 lb / 2.2 - 22.6 x 2.2 kg
60 - 150 x 10 lb / 27.2 - 68 x 4.5 kg
-
Standard Frame Color Black River, Flat Black, Platinum Sparkle, White River
-
Optional Frame Color Custom colors available upon request
-
Plastic Color Ebony
-
Standard Upholstery Color Black, Graphite, Blue Ridge, Burgundy, American Beauty Red
-
Optional Upholstery Color Custom colors available upon request
Product Dimensions & Weight
-

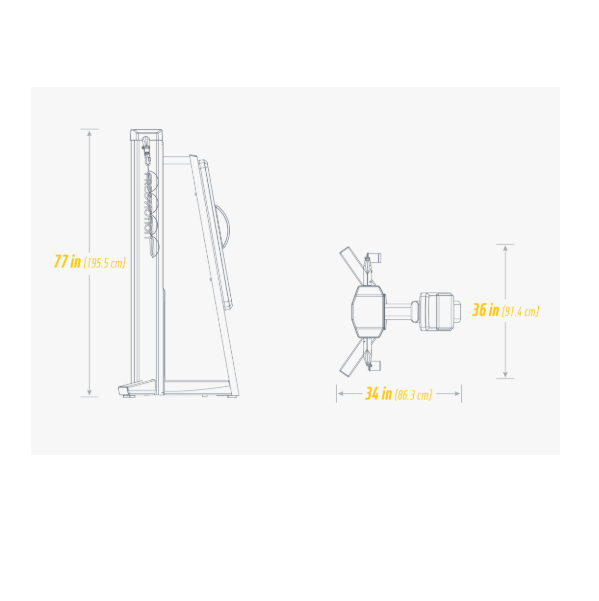

Dimensions L x W x H 34 x 36 x 77 in / 86.3 x 91.4 x 195.5 cm
-
Footprint 34 x 36 in / 86.3 x 91.4 cm
-
Weight 423 lb / 191.8 kg
-
Shipping Dimensions 36 x 34 x 75 in / 91.4 x 86.3 x 190.5 cm
-
Shipping Weight 431 lb / 195.4 kg
Warranty (US & Canada)
-
Frame 10 Years
-
Parts 3 Years
-
Cables & Labor 1 Year
-
Cosmetic & Wear Items 6 Months
-
Upholstery & Padding 120 Days
