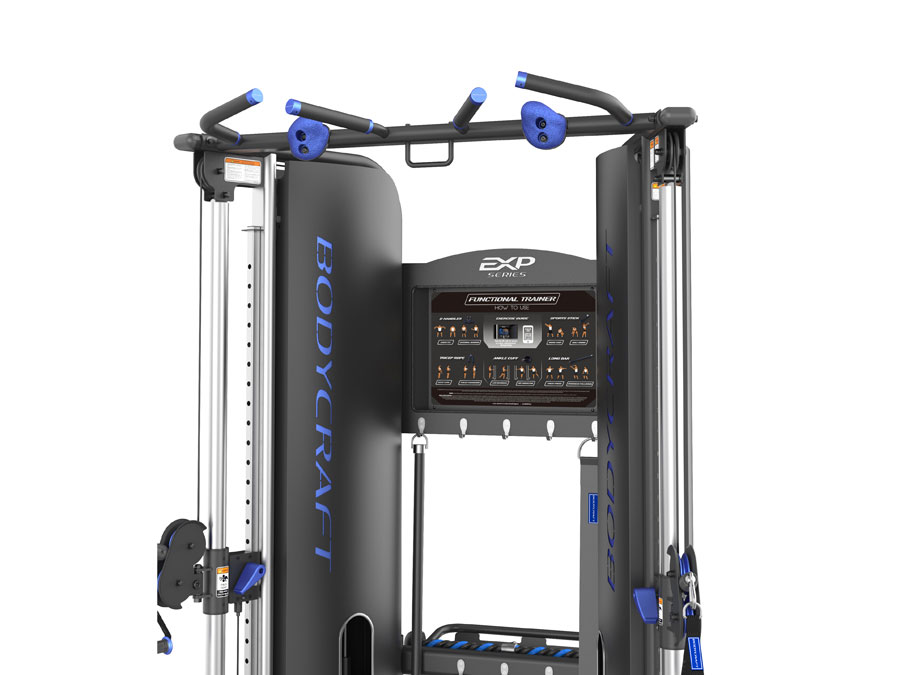

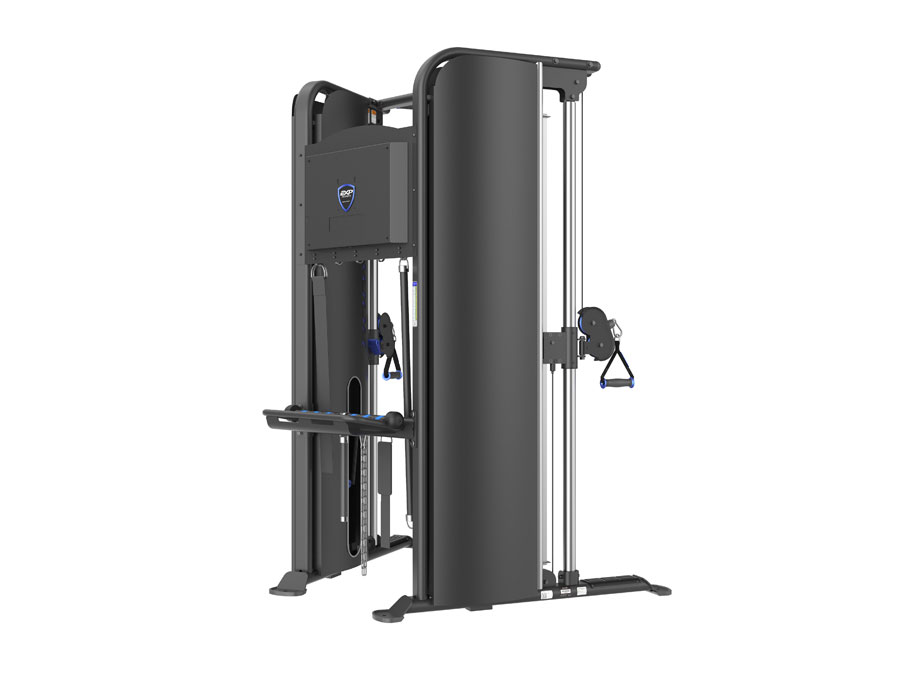

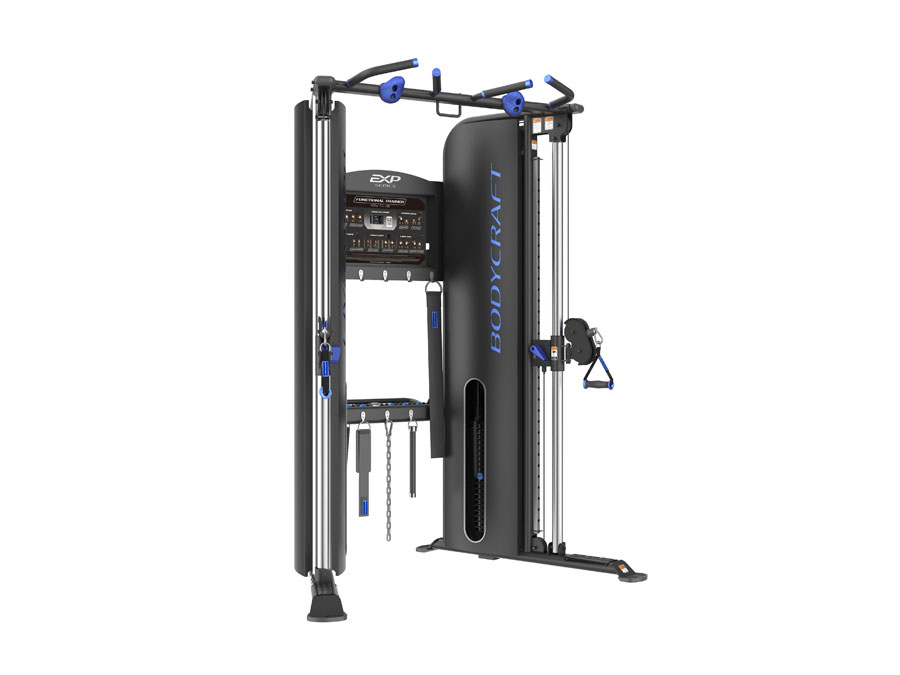

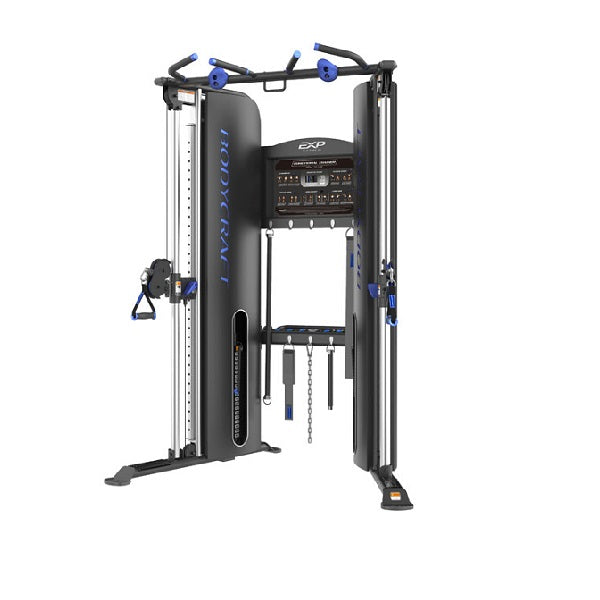

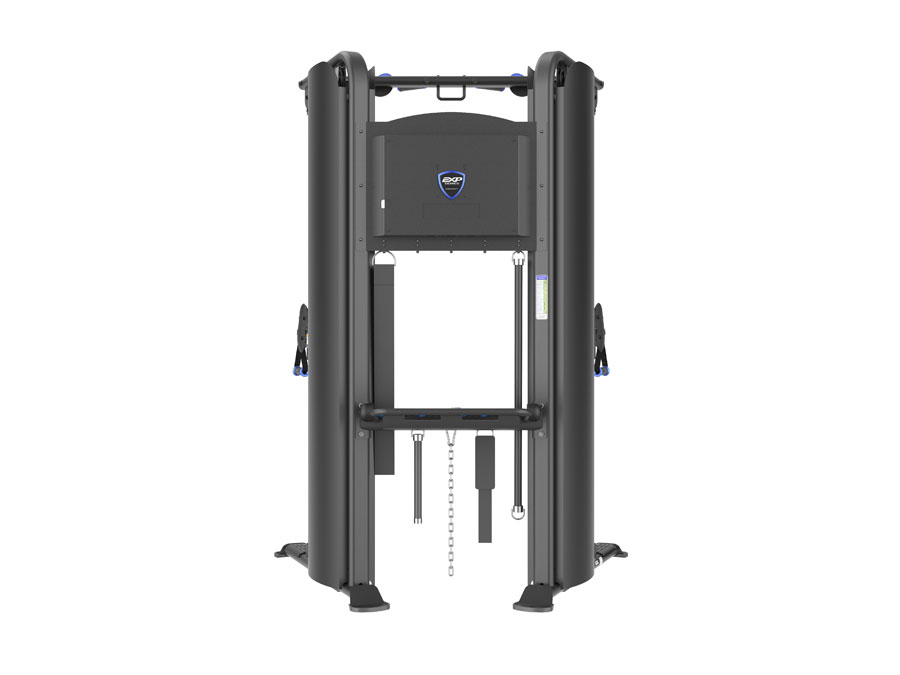

BodyCraft DFT Functional Trainer

Description

The BODYCRAFT EXP Series DFT Functional Trainer features a smart design, providing a wide range of
exercises in a compact space. It offers adjustable weight increments and a 2:1 pulley ratio for easy
intensity control and progression. From the multi-grip pull-up bar to color-coded adjustment points
and illustrated exercise placards, it ensures intuitive use for all users and trainers.

Additional Information

• ACCESSORIES – Dual Contoured Single Handles, Sports Stick, Long Bar, Triceps Rope, Ankle Cuff, Long Strap, Dual Heavy-Duty 21 Link Chains, Storage Tray, Exercise Placard.
• AESTHETICS – Blue Aluminum Pulleys & Selector Pins. All Black Hardware, Blue Adjustment Knob, Single Handle Accents & Braided Triceps Rope. Chrome Hooks.
• PAINT FINISH – Diamond Gray and Textured Black Electrostatic Powder-Coated Finish
• CHIN BAR – (Wide – Classic – Narrow) Uses Include, Pull-Ups, Loop for Suspension Training, Bands, Rock Grips
• SHROUD – Noise Dampening & Laser Cut w/ Blue Logo
• OPTIONAL ADD-ONS – Connect 22 Tablet, Dual 5lb Adder Weights

Specification

• FRAME – Heavy-Gauge Oval Tubing W/ Laser Cut Steel Plates
• CABLE COLUMNS – Independent, Adjustable Cable Columns Pulleys w/ 32 Height Positions. Rotate 200 Degrees
• PULLEY TRAVEL – 61″ Vertical Travel with 32 Height Positions
• CABLE TRAVEL – 77″ (Using One Side)
• STABILITY – Non Skid Extra Wide Stabilizer Rubber Feet w/Scratch Plate for Protection.
• PULLEYS – 3.5″ Pulleys with Sealed Maintenance-Free Precision Ball Bearings
• CABLES – Flexible PU Coated, 7 X 19 Strand Aircraft Cable Rated at Over 2000 lbs. Tensile Strength.
• WEIGHT STACKS – Dual 200 LBS Weight Stacks with Magnetic Selector Pins W/ Lanyard.2:1 Ratio. Optional Upgrade to 250 LBS Each.
• GUIDE RODS – Heavy Duty Solid 3/4“ Chrome Plated
• DIMENSIONS – 62.5″W x 50″D x 84.5″H
• WEIGHT – (Assembled) 800 LBS (900 LBS W/ Upgraded 250 LB Stacks)

Warranty
COMMERCIAL
10 Years: Structural main frames & welds.
5 Years: Parts: bearings, pulleys, bushings, guide rods, & weight plates.
1 Year: Upholstery & cables.
90 Days: Labor

RESIDENTIAL
Lifetime: Structural main frames & welds.
10 Years: Parts: bearings, pulleys, bushings, guide rods, & weight plates.
90 Days: Labor
